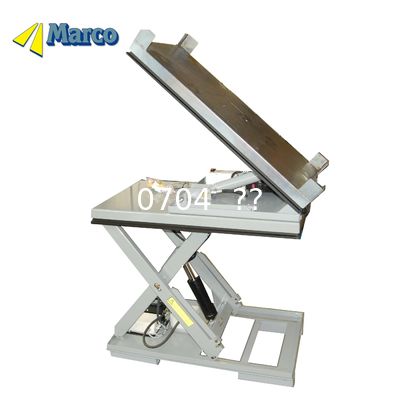

Marco Customsized 40 Degree Tilt Pallet Hydraulic Scissor Lift Table Warehouse Crane
-
Model NO.M1-006090-D1-MT
-
Product NamePallet Hydraulic Scissor Lift Table
-
Capacity600kg
-
Lift Stroke900mm
-
Close Height470mm
-
Transport PackageWooden Pallet
-
TrademarkMarco
-
OriginNingbo
-
HS Code8428909090
-
Supply Ability1200pieces/Year
-
ApplicationWorkshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
-
Lift MechanismScissor Lift
-
Carrying CapacitySpecial Weight Level
-
MovesStationary
-
Driven TypeHydraulic
-
Running ModeStationary
-
CustomizationAvailable | Customized Request
-
CertificationCE, ISO 9001
-
Document
Marco Customsized 40 Degree Tilt Pallet Hydraulic Scissor Lift Table Warehouse Crane
Marco Customsized 40 Degree Tilt Pallet Hydraulic Scissor Lift Table
Product Description
Marco Customsized 40 Degree Tilt Pallet Hydraulic Scissor Lift Table
| Mechanical data | |
| Capacity | 600kg |
| Platform size | 1350x800mm (LxW) |
| Lift stroke | 900mm |
| Lifting time | 20s |
| Closed height | 470mm |
Other
A tilt table designed to tilt 40degrees. On the platform there's support for an eurpallet. This table is also equipped with a pallet truck frame for easy access with a truck.
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
