Building Crane Scissor Lift Table for Swedish Church by Marco Customsized Hydraulic
Detail Information
Certification
CE, ISO 9001
Document
Model NO.:
M3-030045-D2
Product Name:
Marco Customsized Hydraulic Scissor Lift Table
Capacity:
3000kg
Lift Stroke:
450mm
Close Height:
280mm
Transport Package:
Wooden Pallet
Specification:
2700x2500 Mm
Trademark:
Marco
Origin:
Ningbo
HS Code:
8428909090
Supply Ability:
1200pieces/Year
Application:
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:
Scissor Lift
Carrying Capacity:
Special Weight Level
Moves:
Stationary
Driven Type:
Hydraulic
Running Mode:
Stationary
Customization:
Available | Customized Request
Product Description
Marco Customsized Hydraulic Scissor Lift Table for Swedish Church
Product Description
Marco Customsized Hydraulic Scissor Lift Table for Swedish Church
| Mechanical data | |
| Capacity | 3000 kg |
| Lift stroke | 450 mm |
| Lifting time | 16 s |
| Closed height | 280 mm |

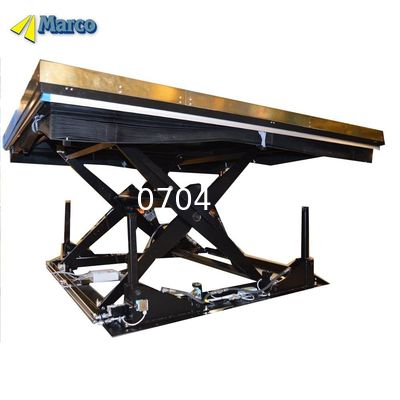

This scissor lift raises and lower the Church organ for a convenient height for the musicians The platform is covered with brass plates and the scissor mechanism is protected with a black bellow.
As extra security we have electro hydraulic operated support leg, securing the table for sinking at the top level.
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
